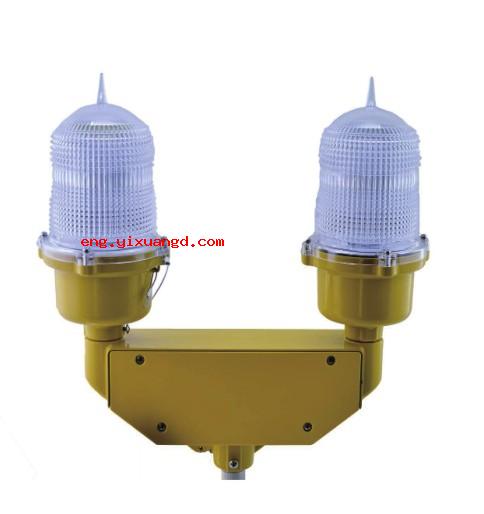

Obstruction light HDS810A

Application field

Used for iron tower (power, communications, microwave, etc.), the chimney (power plant, coking plant, chemical plant, etc.), high building, airport clearance area, large Bridges, large port machinery, large engineering machinery, such as wind turbines need to have the occasion of the warning role on aircraft.

The main functions and characteristics

Based on LED technology, conform to the standardization of optical design.

• built-in LED protection circuit, stable work, save maintenance costs.

• import LED light source, effectively guarantee the super long working life and energy conservation and environmental protection.

Driven by constant current design, the effective protection of circuit with high reliability.

Professional, optical processing and good heat dissipation design, effective guarantee luminous effect and service life.

, shock resistance, corrosion resistance, impact resistance, damp and hot resistance, high and low temperature resistance.

• level of flame retardant: UL94 - where V0.

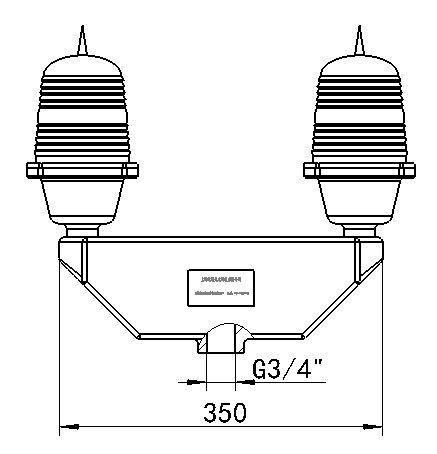

And installation surface by bolted flange plate, base, easy to install.

The main technical parameters

Reference standard: ICAO (no. 14, about attached) in light intensity obstacle lights and FAA - L864 standard

The vertical light Angle: ≧ ° 10 Min

High brightness LED light source

The level of light Angle: 360 °

Emitting light colors: red

Flash frequency: normally on

Working voltage: AC110-240 - v/DC48VDC24V (special voltage can be customized)

Power consumption: < 6 w (flash)

Light life: p 100000 h

The effective intensity: ≧ 32.5% CD

Light-operated switch controlled illumination: 50 lux

Works: a light, a light and set aside

Working temperature: - 40 ℃ ~ + 70?? C

Protection grade: IP65

Working humidity: 10% ~ 95% (condensation)

Reference: weight 5 kg

Material is qualitative

Body: aluminum alloy, chimney: PC

Install and use method

Please install the lamp on the plane, and the plane has enough strength; If not installed flat mounting bracket can be customized according to specific circumstances.

The photoelectric control, when installation, can not be bald head near to the light source; While ensuring the photosensitive head not be nearby objects.

Before connection, please make sure the power supply voltage is the same as the voltage of lamps and lanterns.

Lamps and lanterns with 0.5 m cable, can be directly connected to the corresponding lamps and lanterns, installation is simple, efficiency is higher.

Check the wiring and correct before switching power supply, lamp began to work.

Matters needing attentionThis product work when there will be a temperature rise, belongs to the normal situation.

• non-professional maintenance personnel, please do not open any part of the lamp body, prevent to get an electric shock risk.

, this product is a sealing structure, do not open it, otherwise, the company will not be warranty.
