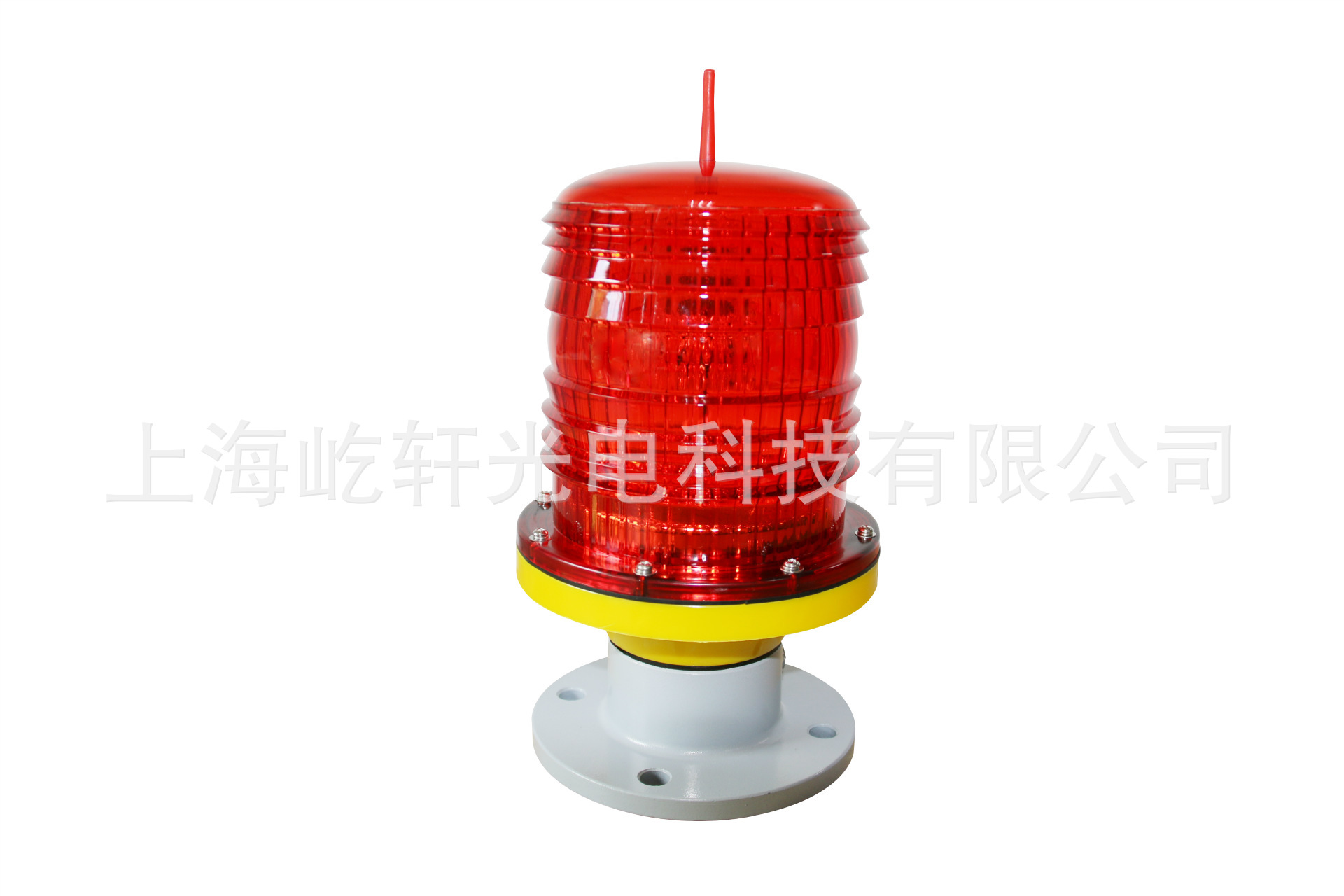

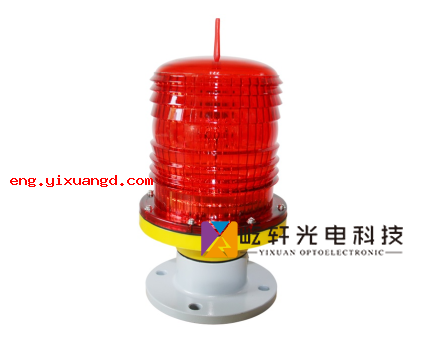

Obstruction light HD810A

Application field

Used for iron tower (power, communications, microwave, etc.), the chimney (power plant, coking plant, chemical plant), wind generators, high-rise buildings, airports, large Bridges, large port machinery, large engineering machinery and other needs to have the occasion of the warning role on aircraft.

The main functions and characteristics

Optical system using Fresnel lens of professional, high luminous efficiency.

USES the international first-class quality LED light source, long life, energy saving, environmental protection, high efficiency.

Professional optical processing and good heat dissipation design, effectively guarantee the glowing effect and service life.

Circuit, electromagnetic compatibility properties using LED to extend the service life of the LED constant current driver.

Professional complete surge device design, complete safety standards.

Lamps and lanterns has good impact resistance, salt fog corrosion, thermal stability, flame retardant properties.

Flashing or normally on customizable, frequency can be customized.

The main technical parameters

Reference standard: ICAO (no. 14, with about) low light intensity obstacle lamp standards and FAA - L810 classification

The vertical light Angle "or" 10 °

LED light source type:

The level of light Angle: 360 °

Emitting light colors: red (special color can be customized)

Flash frequency: normally on/flashing and frequency can be choose

Working voltage: AC220V/DC48V/DC24V other voltage (optional)

Light life: p 100000 h

6 w power consumption:

Light-operated switch controlled illumination: 500 lux

Light intensity: acuity 32.5 CD

Working temperature: - 40 ° C ∽ + 70 ° C

Protection grade: IP65

Working humidity: 10% ~ 95% (condensation)

The reference weight: 2 kg

Material is qualitative

Body: aluminum alloy, chimney: PC

Using range: H ≦ 45 m

Install and use method

• check whether the power supply voltage and rated voltage of lamps and lanterns.

• the chimney and fixed screw lamp holder.

Will take 0.5 m cable, lamps and lanterns of itself.

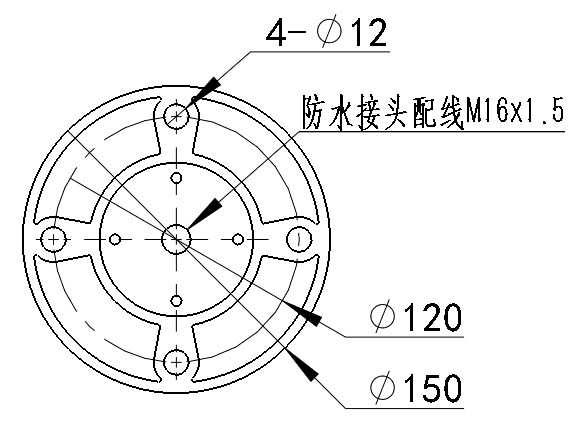

, lamps and lanterns of the bottom flange bolt on the corresponding level stents, stent platform shall have sufficient mechanical strength, can also be carried out by our company according to customer's installation location drawings design, special mounting bracket can be customized.

Optical probe under natural light, avoid artificial light irradiation to install.

Put through power supply, lamp began to work.
