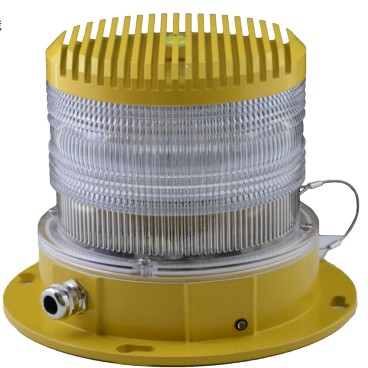

HZ864B Medium Intensity

Application

HZ86B AMedium intensity obstruction light for marking Towers (Telecom, GSM), Smokestacks (heat-engine plant, coking plant, chemical plant etc),Buildings, Port devise, Construction machinery, wind power generator etc for air traffic warning.

Major functions & Features

•Based on LED technology, and meeting optics standard.

•Built-in circuit protect LED, extremely reliable and cost saving.

•Shockproof and corrosion resistant.

•Combustibility rating：UL94-V0。

Specification

International standard

ICAO（Annex 14）medium intensity aviationobstruction light standard and FAA-L864

Vertical degree

3°Min

Light source

LED

Horizontal degree

360°

Color

Red

Flashing rate

20~60times/min customizable

Supply voltage

DC12-48V/AC110-260V(other voltage can be customized)

Flashing duration

150±20ms

Power consumption

30W（Steady）/ 10W (30 FPM)

LED life

≥80,000h

Intensity

2000±25﹪cd

On/Off level

50Lux

Ambient temperature

-40˚C ~ +70˚C

IP Protection

IP65

Humidity

10% ~ 95% (no coagulation）

Weight

4.0kg

Material

Base：Aluminum alloy，Housing：PC

Alarm output

customizable(for remote monitoring)

Installation and operation

•Secure the light on a smooth surface which has enough strength, if there

  is no mounting surface, we can customize special mounting bracket as

  request.

•When installation, please leave the photoelectric sensoring top away the

  nearby light source, at the same time, ensure the photocell will notbe

  covered by the near object.

•Make sure the power supply can match with the rated power of light

  before connecting.

•Check whether the power cables are connected correctly before power on.
