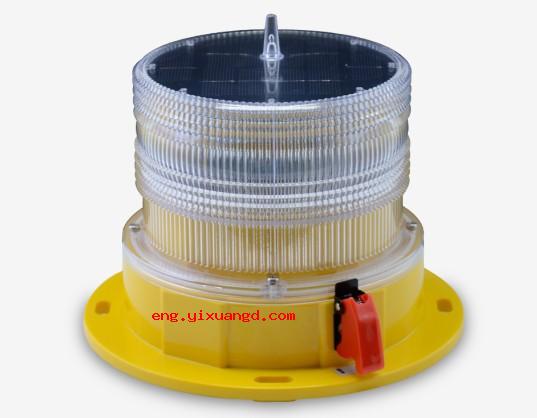

HDT810B SolarAviation

Applications

Obstruction light for a wide variety of cranes used in Harbors, Metallurgies, Towers (Telecom, GSM,Smokestacks, Buildings and any other potentially hazardous obstructions for air traffic with a steady burning red or flash safety light.

Main functions and features

•Extremely Reliable- Major Maintenance Cost Saving

•Shock resistance, corrosion resistance

•Use Ni-MH battery, easy to replace.

•Lamp housing-Polycarbonate, with bird spike, with good anti-

  impact strength, thermal stability, high transmittance.

•Combustibility rating：UL94-V0

Specification

Installation

•Mount the solar light in the most suitable place such as under direct sunlight, to ensure its continuous operation.

•Installation：G3/4”Pipe mounting or Flange mounting, refer to mounting dimension diagram

•For first usage, open the battery switch at the bottom. If store

  for a long time, close the switch.

•It has photocell control function. When the surrounding lamination is lower than the photocell switch lamination, the light starts flash.

Notice

•Replace the battery regularly in order to keep light operate

  normally. It is suggested to replace it every year.

•If the storage time is over 6 months, the light should be placed

  in the sunshine for 3 days to be charged fully before using.

•Be careful for bird spike in case of being injured。
