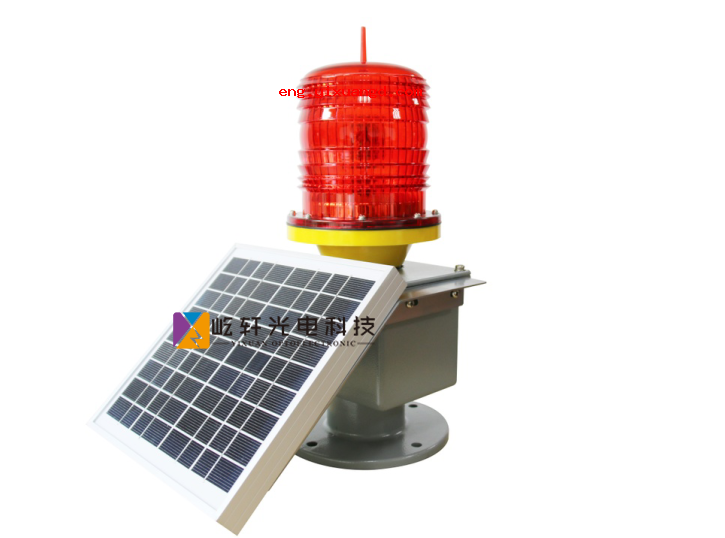

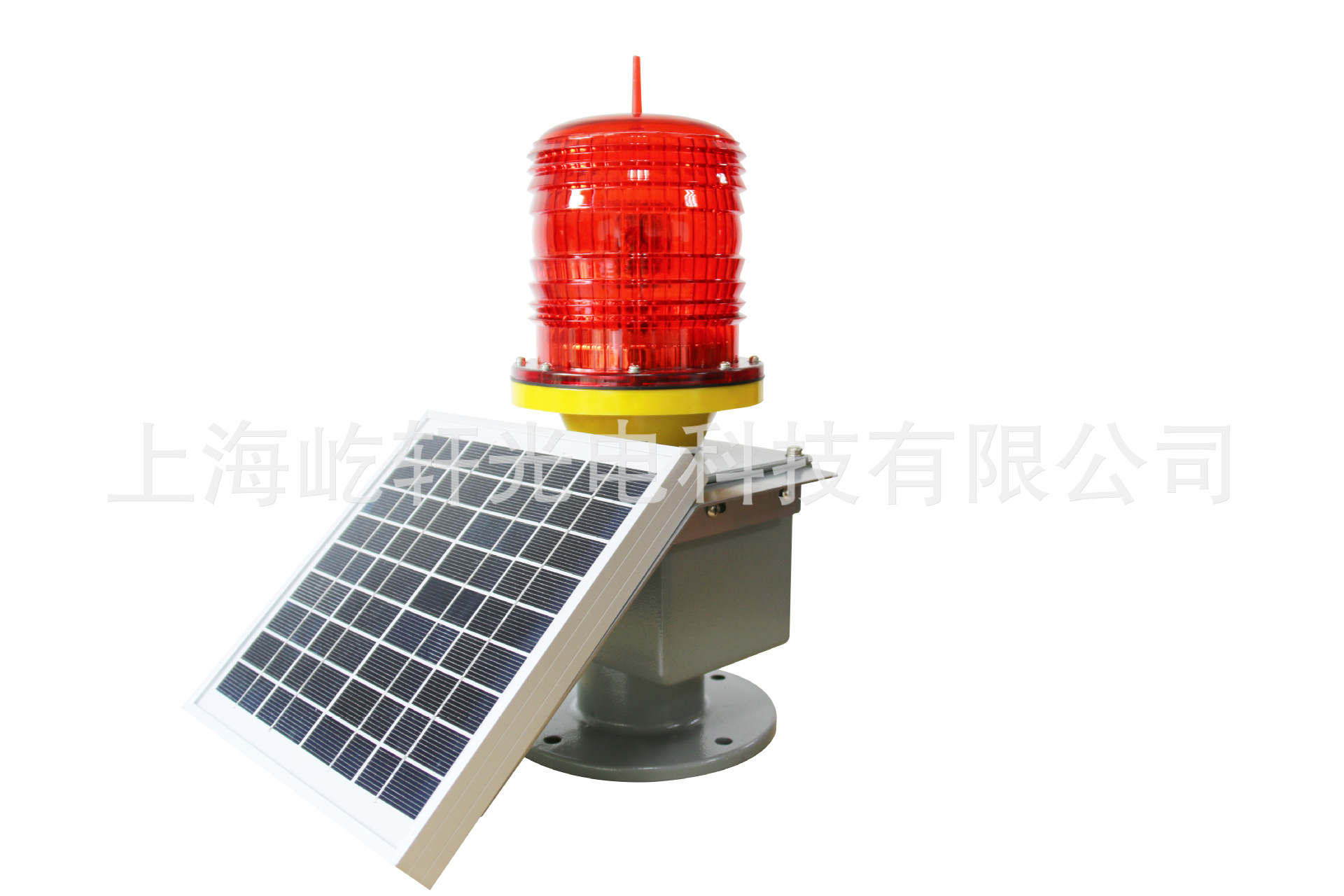

Obstruction light HDT810A

Application field

Applied to the tower (power, communications, microwave, etc.), the chimney (power plant, coking plant, chemical plant, etc.), high-rise buildings, Bridges, port machinery, large engineering machinery, such as wind turbines need to have the occasion of the warning role on aircraft.

The main functions and characteristics

Based on LED and solar charging technology, stable operation, low maintenance cost.

, shock resistant, resistance to corrosion.

The conventional nimh batteries, easy to replace.

Chimney: adopt PC material, has the very good impact strength, thermal stability and glossiness.

• level of flame retardant: UL94 - where V0.

Custom functions, can be combined with your user environment

The main technical parameters

Reference standard: ICAO - Type B low light intensity obstacle lights and FAA - L810 standard

LED light source type:

The vertical light Angle: p 10 °

Emitting light colors: red special color (optional)

The level of light Angle: 360 °

The effective intensity: acuity 32.5 CD

Flash frequency: 30 times/min (special frequency can be customized)

Light life: p 100000 h

Light-operated switch controlled illumination: 500 lux (switch)

Battery parameters: 3.6 V / 8 ah nimh batteries

Solar panels parameters: 6 w / 5 v

Continuous rainy days working days: > 7 days (25 ℃ condition, the environment temperature is lower than 0 ℃ or higher than 40 ℃, will affect the battery discharge)

Working temperature: - 40 ℃ ~ + 55 ℃

Protection grade: IP65

Working humidity: 10% ~ 95%

The reference weight: 8 Kg

The material

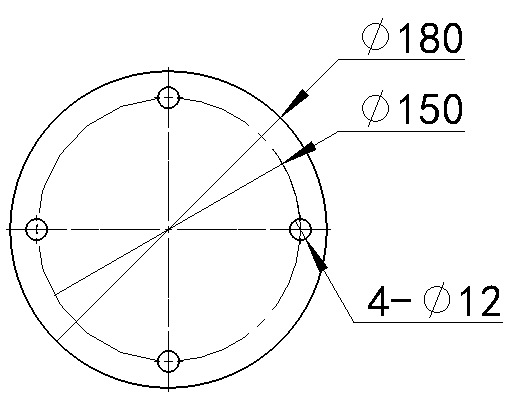

Base: aluminum alloy; Chimney: PC

Install and use method

, lamps and lanterns must be installed in fully accept to the place of sunshine, to make sure it can work continuously.

For the first time, when using, need to open the lid of the above the plug, switch on the power supply, please send this switch off when stored for a long time.

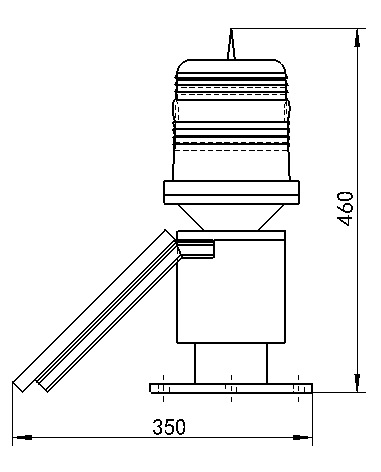

Angle, solar panels can be adjustable between 15 ° ~ 60 °, by adjusting the bracket mounting holes on a corresponding Angle can be obtained.

Bin lamps and lanterns has optical function, when environment illumination is lower than the electric light switch lamp began to work.

Matters needing attention

• contains battery, please replace the battery regularly, to ensure that the lamps and lanterns can work normally, suggest change once a year.

Stored more than 6 months,, the product shall be placed in the sunshine illuminate 3 days for a full charge.
