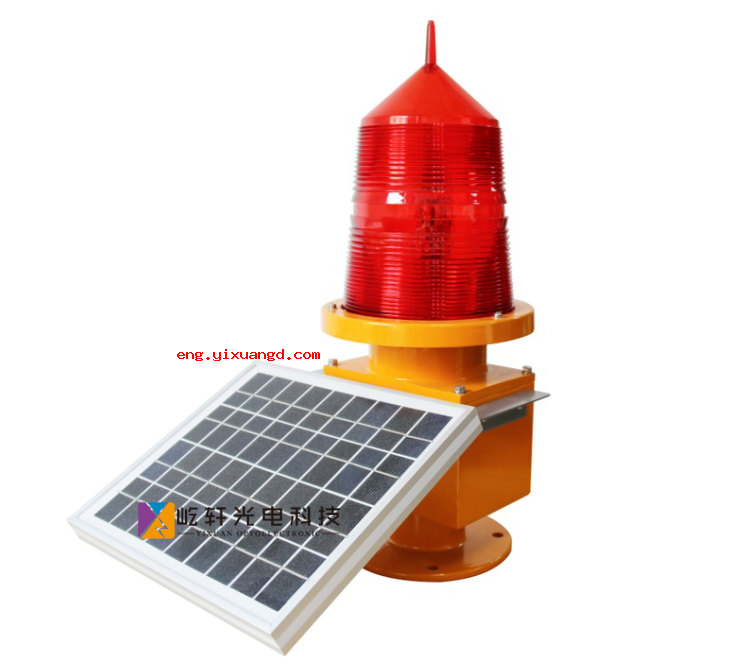

Obstruction light HZT864A

Application field

Used for iron tower (electricity, communications, microwave, etc.), the chimney (power plant, coking plant, chemical plant, etc.), high-rise buildings, Bridges,

Port machinery, large engineering machinery, wind turbines and other needs to have the occasion of the warning role on aircraft.

The main functions and characteristics

Up to the standards of optical design.

Based on LED technology, stable work, save maintenance cost.

, shock resistant, resistance to corrosion.

•contain internal terminal, factory internal connection is connected.

• flammability level: UL94 - where V0.

Using high power LED, LED service life not less than 100000 hours.

The main technical parameters

Reference standard: ICAO; The FAA - L864; MH - T6012-1999

The vertical light Angle: 3 ° or higher

LED light source type:

The level of light Angle: 360 °

Emitting light colors: red

Flash frequency: 20 times per minute

Power supply:

18 v 12 w monocrystalline silicon solar cells

The 12 v 12 ah colloid storage battery

Flash duration: 100 ms

Power: 40 w (maximum)

Light life: 100000 hours or more

The effective intensity: 2000 + 500 CDS

Light-operated switch controlled illumination: 50-200 lux

Working temperature: - 40?? C ~ + 55?? C

Protection grade: IP65

Working humidity: 10% ~ 95% (condensation)

The reference weight: 11 kg

Material is qualitative

Chassis: manufacture (coating), lamp holder: aluminum alloy

Chimney: PC

Cloudy day continuous working time: 7 days (ambient temperature of 25?? C)

Install and use method

Install the product. Pay attention to the adjustment direction of solar panels, solar panels should be toward the south (northern hemisphere)

The installation, the Angle of the panels with horizontal plane shall be equal to the latitude of the local.

Connected solar panels, plug to the socket on the chassis, and screw down the screws.

Open the battery switch, products can work normally.

Matters needing attention

More than 3 months, do not use this product, the need for a battery charging. Specific methods have two:

1, open the box, take out the battery, the use of external power source to charge batteries.

2, place the product in sunny places, open the battery switch, the use of solar energy charge. electricity

Pool after a full charge the battery switch to shut down.

, working in the product, please do not open any part of the lamp body, prevent dangerous.

This product is a sealing structure, non-professional maintenance personnel do not tear open outfit, once found, the company shall not be

In the warranty.

• please make sure the correct use of this product in accordance with the above method

Common place：
