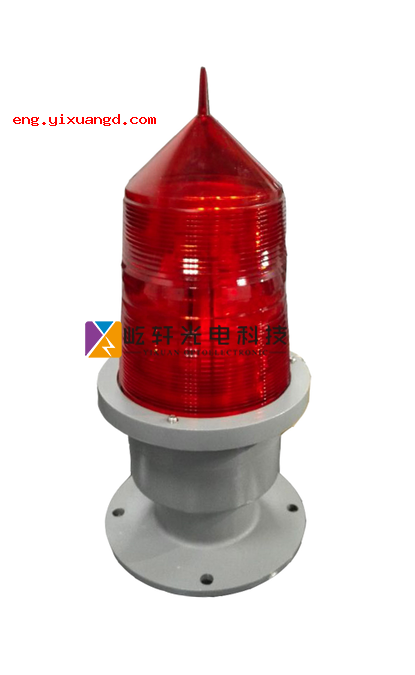

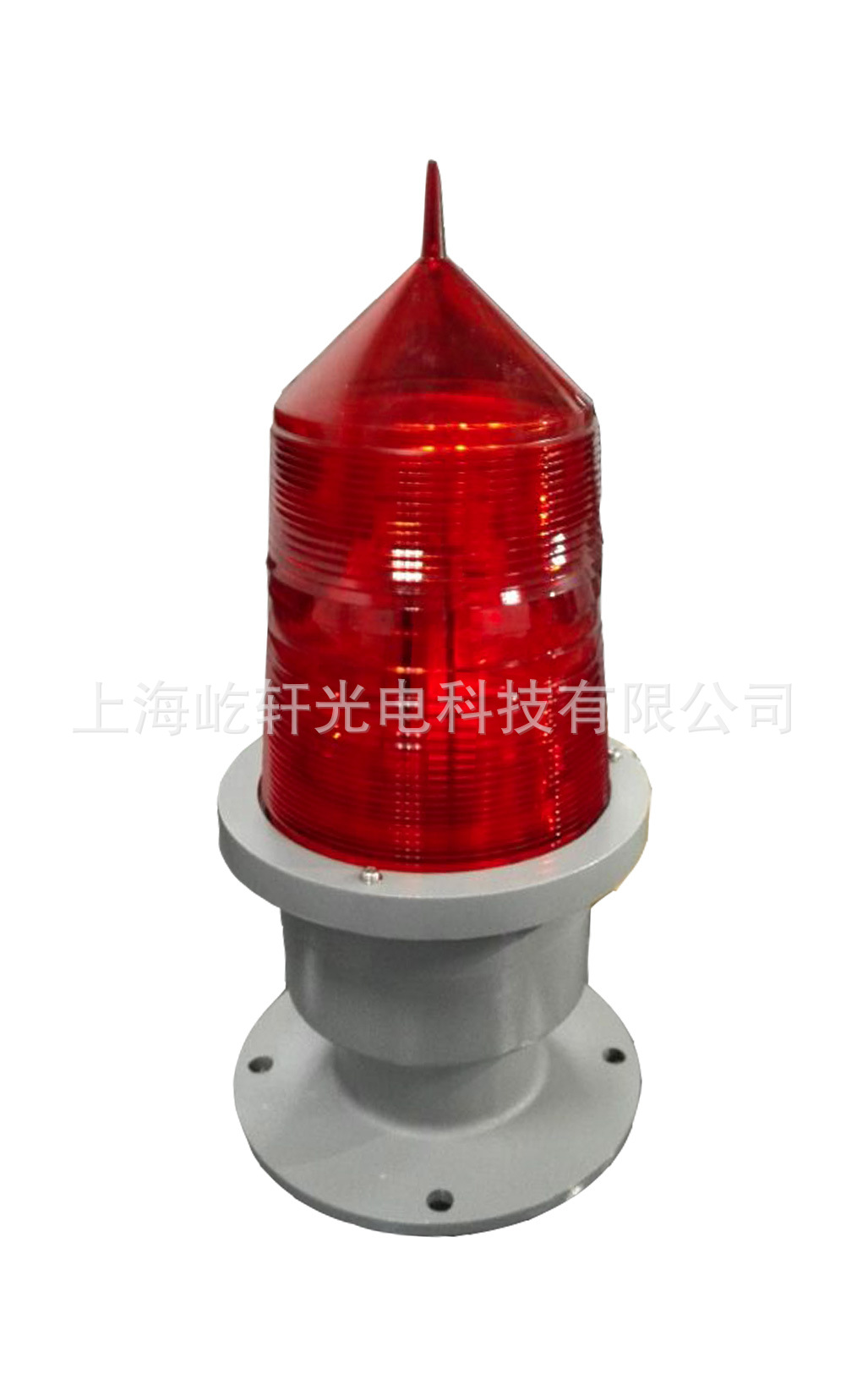

Obstruction light HZ864A

Application field

Used for iron tower (power, communications, microwave, etc.), the chimney (power plant, coking plant, chemical plant), wind generators, high-rise buildings, airports, large Bridges, large port machinery, large engineering machinery and other needs to have the occasion of the warning role on aircraft.

The main functions and characteristics

Optical system using Fresnel lens of professional, high luminous efficiency.

USES the international first-class quality LED light source, long life, energy saving, environmental protection, high efficiency.

Professional optical processing and good heat dissipation design, effectively guarantee the glowing effect and service life.

Circuit, electromagnetic compatibility properties using LED to extend the service life of the LED constant current driver.

Professional complete surge device design, complete safety standards.

Lamps and lanterns has good impact resistance, salt fog corrosion, thermal stability, flame retardant properties.

Flashing or normally on customizable, frequency can be customized.

Wireless GPS can be used to realize synchronous way.

The main technical parameters

Reference standard: ICAO (no. 14, about attached) in light intensity obstacle lights and FAA - L864 standard

The vertical light Angle: 3 ° Min

High brightness LED light source

The level of light Angle: 360 °

Emitting light colors: red

Flash frequency: 20 ~ 60 times/min (normally on customizable)

Working voltage: DC48V/DC24V/AC110-240 (special voltage can be customized)

Flash duration: 150 + 20 ms

Power consumption: 20 w (normally on) 10 w / 30 times/min) (

Light life: p 100000 h

The effective intensity: 2000 + 25% for CD

Light-operated switch controlled illumination: 50 lux

Working temperature: - 40 ℃ ~ + 70?? C

Protection grade: IP65

Working humidity: 10% ~ 95% (condensation)

The reference weight: 4.0 kg

Material is qualitative

Body: aluminum alloy, chimney: Neil lens

Using range: 45 m ≦ H ≦ 105 m

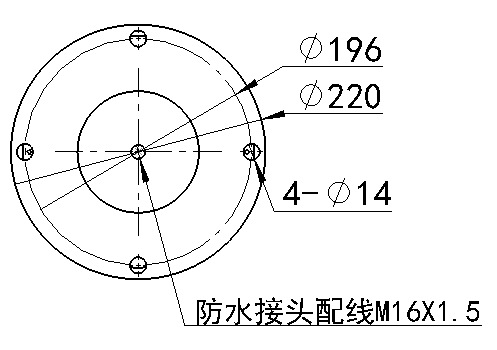

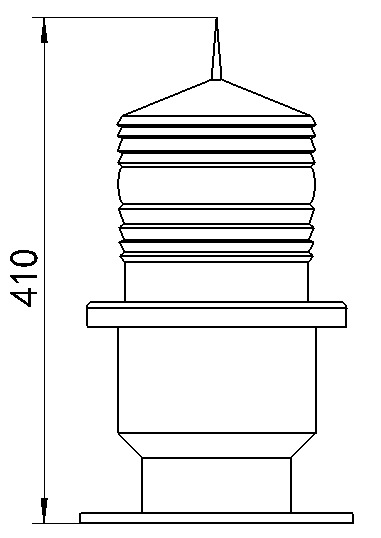

Install and use method

, please install the lamp on the plane, and the plane has enough strength; If not installed flat mounting bracket can be customized according to specific circumstances.

When installation, do not use the photoelectric control baldheaded near to the light source; While ensuring the photosensitive head not be nearby objects.

Before connection, please make sure the power supply voltage is the same as the voltage of lamps and lanterns.

, lamps and lanterns before delivery will be configured according to customer's site is 0.5 meters of cable, the user can direct cable connection to the lamps and lanterns, convenient installation.

, check the wiring is correct before switching power supply, lamp began to work.

Matters needing attention

This product work when there will be a temperature rise, belongs to the normal situation.

• non-professional maintenance personnel, please do not open any part of the lamp body, prevent to get an electric shock risk.

, this product is a sealing structure, do not open it, otherwise, the company will not be warranty.
